Viega type Short Tangent 90 Degree elbowSupplier And Stockist In China

Viega type Short Tangent 90 Degree elbow

Ime：Stainless Steel Viega type Short Tangent 90 Degree elbow

Veličina:1/2"-6"inch DN12mm~DN100mm,OD17mm-OD108mm

Materijal:Stainless Steel SS 304/SS316L

Connect Type:Press/Thread

Work Pressure:1.6Mpa

O Ring Seal:EPDM / HNBR / FKM

Obrada površina:Pickling

Aplikacija:Fluid contrl pipeline system

Model Number:KX20015

Technics:Pressed

los:Wenzhou,zhejiang

Standard:EU,JIS, AiSi, ASTM, DIN Acord requiment cad drawing

Brand:OEM Avalible

Usage:Round pipe end caps

Paket:Standard export carton

Cijena：Negotiate

Dostava： Accord Količina

Certifikat：

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Proizvodna sposobnost：100000pcs per month

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -10°C - 110°C (With EPDM seals)

Materijal	Stainless steel 304/316L
Veličina	15,18,22,28,35,42,54,76.1,88.9,108mm
Fitting Standard	JIS,DVGW W534
Working Temperature	-20℃ ~110℃
Nominal Pressure	≤1.6MPa
Seal ring	LBP gasket, EPDM (black), HNBR,NBR
OEM	Acceptable,Negotiable
Sample time	3 days
Delivery time	20-30days
MOQ	500pcs

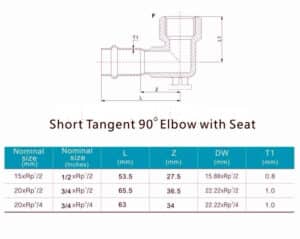

Viega type Short Tangent 90 Degree elbow size drawing

Colour: Black Green Yellow
Materijal: EPDM FKM HNBR
Working temperature -30°C to 120°C -20°C to 200°C -20-100℃
Application Water High-temperature Gas

DN（OD） 15 18 22 28 35 42 54 76.1 88.9 108
Debljina(mm) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.00 2.00 2.00
Material 316L
Apply pressure(bar) 50
Test time(min) 120
Observation No leakage
Test results Passed

Application Max working pressure Recommended size

Water and liquid solution 40 (bar) 15 to 22mm
Water and liquid solution 25 (bar) 28 to 35mm
Water and liquid solution 16 (bar) 42 to 108mm
Air (nonflammable) 16(bar) 15 to 108mm
Gases (noxious） 5(bar) 15 to 108mm

Viega type Short Tangent 90 Degree elbow

Press Fitting od nerđajućeg čelika/

Viega type Short Tangent 90 Degree elbow
