Sizes Chart and Dimensions of drawing for V Profile Stainless Steel Coupling with Union Nut

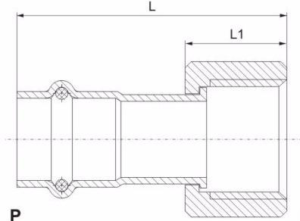

V Profile stainless steel coupling with union nut drawing
| Adapter with Union Nut | |||
| Nominal Size (mm) P×N |
Nominal Size (Inches) P×N |
(mm) | L1 (mm) |
| 12×1/2 | 3/8×1/2 | 65 | 16 |
| 15×1/2 | 1/2×1/2 | 67 | 16 |
| 15×3/4 | 1/2×3/4 | 69 | 18 |
| 20×1/2 | 3/4×1/2 | 67 | 16 |
| 20×3/4 | 3/4×3/4 | 70 | 18 |
| 20×1 | 3/4×1 | 73.5 | 20 |
| 25×1 | 1×1 | 75.5 | 20 |
| 32×11/4 | 11/4×11/4 | 83 | 24 |
| 40×11/2 | 11/2×11/2 | 92 | 24 |
| 50×2 | 2×2 | 104 | 27 |

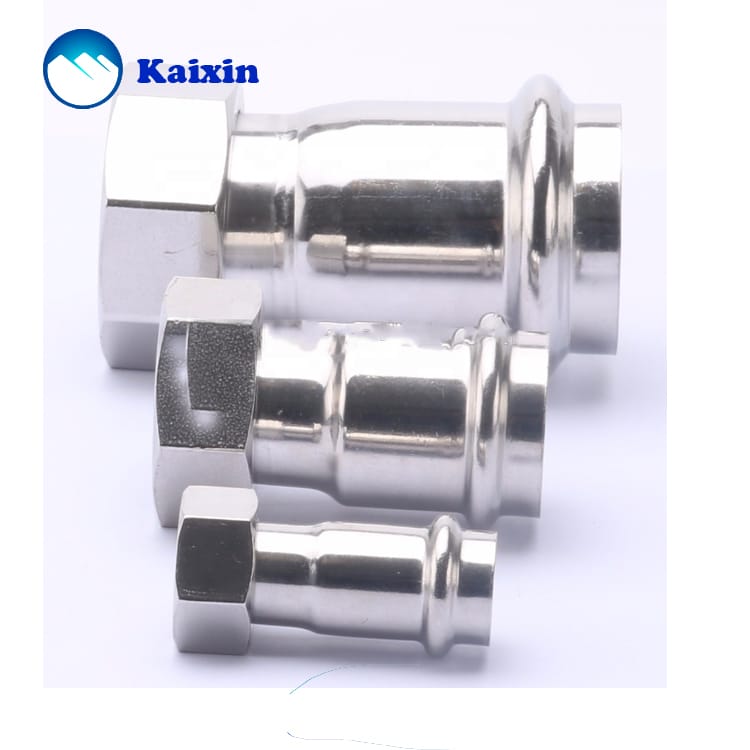

Whats is V Profile stainless steel coupling with union nut press fitting?
The V Profile stainless steel coupling with union nut press fitting is a type of coupling used in plumbing and piping systems. It consists of a coupling body with a V-shaped profile and a union nut that secures the coupling to the pipe. The press fitting mechanism enables quick and easy installation without the need for soldering or threading.
The stainless steel construction of the coupling provides high durability and resistance to corrosion. This makes the VProfile coupling suitable for use in a wide range of environments, including harsh industrial and marine applications.
The union nut allows for the quick disconnection of pipes without the need for a specialized tool. This can be useful in situations where pipes need to be regularly removed or replaced, such as during maintenance or repairs.
Overall, the VProfile stainless steel coupling with union nut press fitting is a reliable and versatile solution for connecting pipes in plumbing and piping systems.
