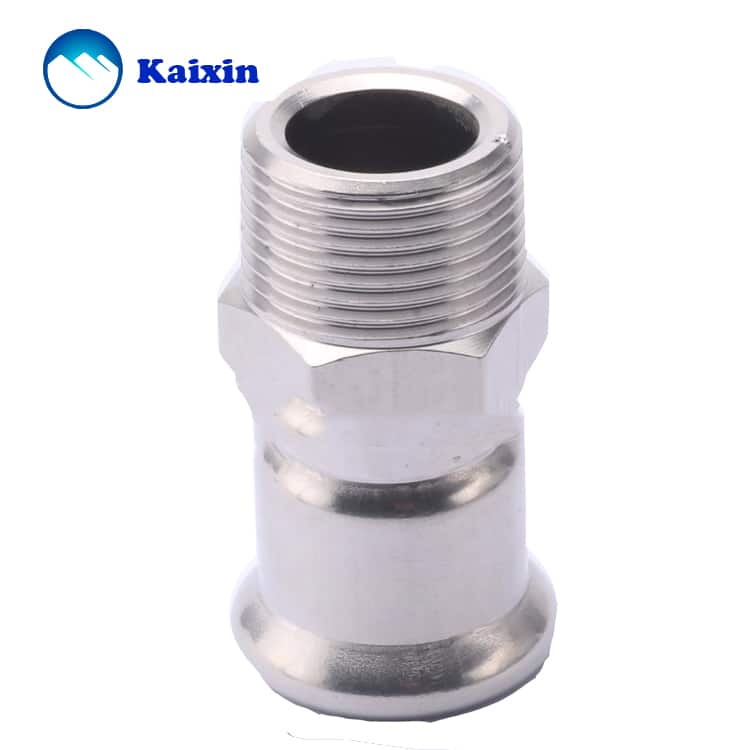

Adapter With Male Threaded plumbing Press Fitting size chart and drawing

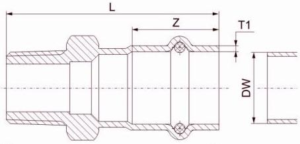

Stainless Steel adapt with male thread press fitting drawing
| Nominal
Size (mm) P×M |
Nominal
Size (Inches) PXM |
(mm) |
Z
(mm) |
T1
(mm) |
DW
(mm) |
T2
(mm) |
| 12 × 1/2 | 3/8× 1/2 | 52.5 | 22 | 1.5 | 15 | 1.0 |
| 15 × 1/2 | 1/2×1 /2 | 54.5 | 22 | 1.5 | 18 | 1.0 |
| 15× 3/4 | 1/2× 3/4 | 61.5 | 22 | 1.5 | 18 | 1.0 |
| 20× 1/2 | 3/4× 1/2 | 55.5 | 23 | 1.5 | 22 | 1.2 |
| 20× 3/4 | 3/4× 3/4 | 62.5 | 23 | 1.5 | 22 | 1.2 |
| 25×1 | 1×1 | 71.5 | 24 | 1.5 | 28 | 1.5 |
| 32×11/4 | 11/4×11/4 | 80 | 27 | 1.5 | 35 | 1.5 |
| 40×11/2 | 11/2×11/2 | 93.5 | 36 | 1.5 | 42 | 1.5 |
| 50×2 | 2×2 | 105 | 40 | 1.5 | 54 | 1.5 |
The DVGW W534 is a German standard for the certification of products used in gas and water supply systems. It ensures that the product meets high-quality standards and compliance with national regulations.
The adapter with male-threaded plumbing press fitting is a component that allows connection between pipes and fittings of different sizes or types. The male threading on one end of the adapter allows it to be screwed onto a female threaded pipe or fitting, while the press fitting end allows the connection to be sealed with a press tool.
Overall, this component is designed for reliable and efficient connection of pipes and fittings in gas and water supply systems.
