Stainless Steel Socket Weld Full Coupling

名前: Socket Weld Full Coupling

サイズ:1/2″NB TO 4″NB IN

Pressure Ratings2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

厚さ : スケジュール5S, 10S, 20S, S10, S20, S30, 性病, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXSなど.

寸法ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799

グレード&材料ASTM A403 WP Gr. 304, 304L, 304H, 310, 316, 316L, 316H, 316の, 317L, 321, 347, 904L,ASTM A234 WPB, WPBW, WPHY 70, WPHY 65, WPHY 60, WPHY 52, WPHY 46, & WPHY 42,ASTM A420 WPL6, ASTM A420 WPL3,ASTM / ASME A/S.A. 234 グループ. WP1, WP5, WP9, WP11, WP12, WP22, WP91ASTM A815, ASME SA815 UNS NO S31803, UNS NO S32205, 米国 S32750, UNS S32950. 材料番号. 1.4462,私たち 10276 (HASTELLOY C 276), 私たち 6625 (INCONEL 625), 私たち 6601 (INCONEL 601), 私たち 6600 (INCONEL 600), 私たち 8825 (INCONEL 825), 私たち 8020 (合金 20 / 20 CB 3), 私たち 4400 (MONEL 400), 私たち 2201 (NICKEL 201), ASTM / ASME SB 336 私たち 2200 (NICKEL 200)

タイプ: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

から:Socket Weld Full Coupling

応用: オフショア石油掘削会社,発電,ガス処理,石油化学製品,製薬機器,特殊化学品,化学装置,医薬品, パルプ & 製紙産業,海水設備,熱交換器,コンデンサー

Model number: KXWFC

ムース: 温州,浙江省

標準:ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97,DIN28011, DIN2617, DIN2616, DIN2615, DIN2605,EN10253-2, EN10253-1

パッケージ: 標準輸出パッケージ

配達: アコード数量

  • 製品の詳細

What is a Socket Weld Full Coupling ?

A stainless steel socket weld full coupling is a type of fitting that is used to connect two pipes together. It has a socket weld end which allows for easy welding to the pipe and a full coupling design that ensures a secure connection. This type of coupling is made of high-quality stainless steel which makes it strong, durable and resistant to corrosion. It is commonly used in a variety of industrial applications including chemical processing, food and beverage production, and oil and gas refining. The socket weld full coupling comes in different sizes and is designed to meet various pipe diameters, pressure ratings, and temperature ratings. It is an essential component in many piping systems and is often used in conjunction with other fittings such as elbows, tees, and flanges to create a complete piping system.

Socket Weld Full Coupling Specifications

サイズ 1/2″NB TO 4″NB IN
規格 ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97,DIN28011, DIN2617, DIN2616, DIN2615, DIN2605,EN10253-2, EN10253-1
寸法 ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
厚さ スケジュール5S, 10S, 20S, S10, S20, S30, 性病, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXSなど.
Pressure Ratings 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
から Socket Weld Full Coupling
グレード&材料 ASTM A403 WP Gr. 304, 304L, 304H, 310, 316, 316L, 316H, 316の, 317L, 321, 347, 904L,ASTM A234 WPB, WPBW, WPHY 70, WPHY 65, WPHY 60, WPHY 52, WPHY 46, & WPHY 42,ASTM A420 WPL6, ASTM A420 WPL3,ASTM / ASME A/S.A. 234 グループ. WP1, WP5, WP9, WP11, WP12, WP22, WP91ASTM A815, ASME SA815 UNS NO S31803, UNS NO S32205, 米国 S32750, UNS S32950. 材料番号. 1.4462,私たち 10276 (HASTELLOY C 276), 私たち 6625 (INCONEL 625), 私たち 6601 (INCONEL 601), 私たち 6600 (INCONEL 600), 私たち 8825 (INCONEL 825), 私たち 8020 (合金 20 / 20 CB 3), 私たち 4400 (MONEL 400), 私たち 2201 (NICKEL 201), ASTM / ASME SB 336 私たち 2200 (NICKEL 200)
タイプ Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT

Manufacturing Standards of Socket Weld Full Coupling

ASME Standard ASME/ANSI B16.11, MSS SP-79, MSS-SP-95, 83, 97
DIN Standard DIN28011, DIN2617, DIN2616, DIN2615, DIN2605
基準 EN10253-2, EN10253-1
ASME B16.11 Socket Weld Fittings, Socket – Welding and Threaded
ASTM A182 – ASME SA182 Standard Specification for Wrought Austenitic SS Piping Socket Weld Fittings
MSS SP-95 Swage(d) Nipples and Bull Plugs

Forged Socket Weld Full Coupling Materials and Grades

Stainless Steel Socket Weld Full Coupling
ASTM A403 WP Gr. 304, 304L, 304H, 310, 316, 316L, 316H, 316の, 317L, 321, 347, 904L
Carbon Steel Socket Weld Full Coupling
ASTM A234 WPB, WPBW, WPHY 70, WPHY 65, WPHY 60, WPHY 52, WPHY 46, & WPHY 42.
Low Temperature Socket Weld Full Coupling
ASTM A420 WPL6, ASTM A420 WPL3
Alloy Steel Socket Weld Full Coupling
ASTM / ASME A/S.A. 234 グループ. WP1, WP5, WP9, WP11, WP12, WP22, WP91
デュプレックス & Super Duplex Steel Socket Weld Full Coupling
ASTM A815, ASME SA815 UNS NO S31803, UNS NO S32205, 米国 S32750, UNS S32950. 材料番号. 1.4462
Nickel Alloy Socket Weld Full Coupling
私たち 10276 (HASTELLOY C 276), 私たち 6625 (INCONEL 625), 私たち 6601 (INCONEL 601), 私たち 6600 (INCONEL 600), 私たち 8825 (INCONEL 825), 私たち 8020 (合金 20 / 20 CB 3), 私たち 4400 (MONEL 400), 私たち 2201 (NICKEL 201), ASTM / ASME SB 336 私たち 2200 (NICKEL 200)

Socket Weld Full Coupling Fittings Types BY Size, クラス, and Wall Thickness

Description Class Designation
2000 3000 6000
Full Coupling 1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
1/2 – 4 1/2 – 2 1/2 – 2
Pipe Size

by Wall Thickness

SCH 80 / XS SCH 160 XXS

Socket Weld Full Coupling Dimensions

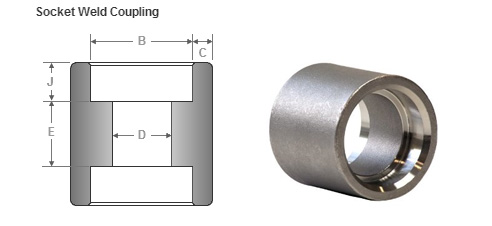

ocket Weld Full Coupling Specifications drawing

ocket Weld Full Coupling Specifications drawing

3000 LB Socket Weld Full Coupling Dimensions In MM

NPS Socket

Bore

Socket

壁の厚さ

Bore

diameter

Depth

Socket

Laying lengths
B C D J E
1/2 21.95

21.70

4.65

4.10

16.6

15

10 9.5
3/4 27.30

27.05

4.90

4.25

21.7

20.2

13 9.5
1 34.05

33.80

5.70

5.00

27.4

25.9

13 13
11/4 42.80

42.55

6.05

5.30

35.8

34.3

13 13
11/2 48.90

48.65

6.35

5.55

41.7

40.1

13 13
2 61.35

61.10

6.95

6.05

53.5

51.7

16 19
21/2 74.20

73.80

8.75

7.65

64.2

61.2

16 19
3 90.15

89.80

9.50

8.30

79.5

46.4

16 19
4 115.80

115.45

10.70

9.35

103.8

100.7

19 19

クラス 6000 Socket Weld Full Coupling Dimensions In Inches

NPS Socket

Bore

Socket

壁の厚さ

Bore

diameter

Depth

Socket

Laying lengths
B C D J Coupling

E

1/2 21.95

21.70

5.95

5.20

12.5

11

10 9.5
3/4 27.30

27.05

6.95

6.05

16.3

14.8

13 9.5
1 34.05

33.80

7.90

6.95

21.5

19.9

13 13
11/4 42.80

42.55

7.90

6.95

30.2

28.7

13 13
11/2 48.90

48.65

8.90

7.80

34.7

33.2

13 13
2 61.35

61.10

10.90

9.50

43.6

42.1

16 19

Socket Weld Full Coupling Pipe Fittings Weight Chart

名前 Working Pressure 1/4 3/8 1/2 3/4 1 1-1/4 1-1/2 2
Coupling S/W 3000# 9 18 26 40 92 152 229 462
Coupling Screw 3000# 9 18 26 40 92 152 229 462

Dimensional Tolerances of Socket Weld Full Coupling as per ASME B16.11

Socket Weld Full Coupling ASME B16.11 Tolerance (Full Coupling) Full Coupling
Socket Weld Fitting Dimension (NPS)

Diameter

ベベルにて

内部

Diameter

最後に

Wall Thickness T 中心から端まで

寸法

あ ,C ,B

1/2 に 2-1/2 +0.06 Not less than 87.5%

of nominal thickness

+/- 0.06
-0.03
3 に 3-1/2 +/- 0.06 +/- 0.06 +/- 0.06
4 +/- 0.06 +/- 0.06 +/- 0.06
5 に 8 +/- 0.06 +/- 0.06 +/- 0.06
10 に 18 +0.16 +/- 0.12 +/- 0.09
-0.12
20 に 24 +0.25 +/- 0.19 +/- 0.09
-0.19
26 に 30 +0.25 +/- 0.19 +/- 0.12
-0.19
32 に 48 +0.25 +/- 0.19 +/- 0.19
-0.19



ASME B16.11 SS Socket Weld Full Coupling Angularity Tolerance

ND 最大オフ角 最大オフプレーン
Q P
1/2 ある 4 1 2
5 ある 8 2 4
10 ある 12 3 5
14 ある 16 3 7
18 ある 24 4 10
26 ある 30 5 10
32 ある 42 5 13
44 ある 48 5 20

Available Types of ASME B16.11 Socket Weld Full Coupling

ANSI B16.11 Forged Socket weld Full Coupling BS 3799 Forged Full Coupling
Forged Socket weld Full Coupling Socket weld Forged Pipe Full Coupling
Carbon Steel Socket weld Full Coupling High Quality Socket weld Full Coupling
ASTM A182 Socket weld Stainless Steel Full Coupling Duplex Steel Socket weld Full Coupling
Forged Steel Socket weld Full Coupling Forged Socket weld Full Coupling
150 lb. Socket Weld Fittings Full Coupling Socket weld Forged Full Coupling
ASME B16.11 Forged Socket weld Full Coupling Forged Full Coupling 3000LB Socket Weld
Stainless Steel Socket Weld Full Coupling SS Forged Socket weld Full Coupling
Super Duplex Steel Socket Weld Full Coupling Copper Nickel Socket weld Full Coupling
High Nickel Alloy Forged Socket weld Full Coupling Hastelloy Socket weld Full Coupling
Titanium Forged Socket weld Full Coupling Inconel Socket weld Full Coupling

Stainless Steel Socket Weld Full Coupling Pipe Fittings Applications

  • オフショア石油掘削会社
  • 発電
  • ガス処理
  • 石油化学製品
  • 製薬機器
  • 特殊化学品
  • 化学装置
  • 医薬品
  • パルプ & 製紙産業
  • 海水設備
  • 熱交換器
  • コンデンサー
