Поставщик труб из нержавеющей стали Вэньчжоу Kaixin Китай
| Series Ⅰ(GB) | Series Ⅱ(ОН) | E series(В) | ||||||
| Nominal diameter | outer diameter | Толщина | Nominal diameter | outer diameter | Толщина | Code | outer diameter | Толщина |
| DN15 | 15.9 | 0.8 | DN15 | 15.88 | 0.8 | E0115 | 15 | 1.0 |
| DN20 | 20 | 1.0 | DN20 | 22.22 | 1.0 | E0118 | 18 | 1.0 |
| DN25 | 25.4 | 1.0 | DN25 | 28.58 | 1.0 | E0122 | 22 | 1.2 |
| DN32 | 32 | 1.2 | DN32 | 34 | 1.2 | E0128 | 28 | 1.2 |
| DN40 | 40 | 1.2 | DN40 | 42.7 | 1.2 | E0135 | 35 | 1.5 |
| DN50 | 50.8 | 1.2 | DN50 | 48.6 | 1.2 | E0142 | 42 | 1.5 |
| DN65 | 76.1 | 2.0 | DN65 | 76.1 | 2.0 | E0154 | 54 | 1.5 |
| DN80 | 88.9 | 2.0 | DN80 | 88.9 | 2.0 | E0176 | 76.1 | 2.0 |
| DN100 | 108 | 2.0 | DN100 | 101.6 | 2.0 | E0189 | 88.9 | 2.0 |
| E01108 | 108 | 2.0 | ||||||

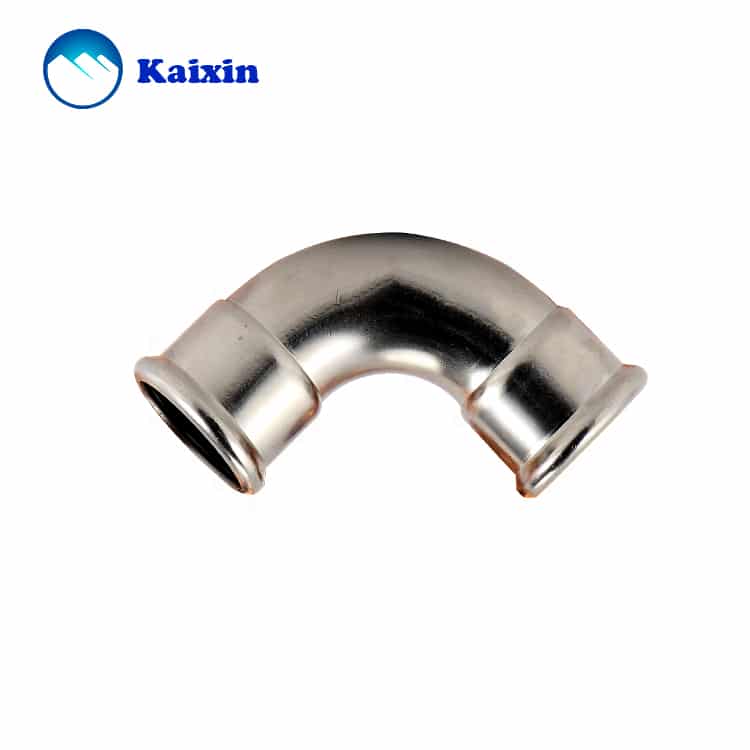

Тип М, нержавеющая сталь 90 Degree Elbow Pipe Press Fitting drawing and size dimension

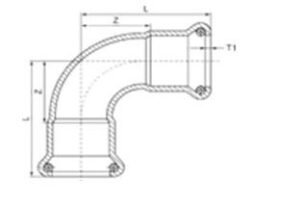

Тип М, нержавеющая сталь 90 Degree Elbow Pipe Press Fitting drawing
| Размер(ОТ) мм |
L mm mm | Z mm | T1 mm |
| 15 | 45 | 22 | 1.5 |
| 18 | 49 | 26.5 | 1.5 |
| 22 | 54.5 | 31.5 | 1.5 |
| 28 | 64 | 39 | 1.5 |
| 35 | 74 | 45 | 1.5 |
| 42 | 90 | 56 | 1.5 |
| 54 | 112 | 73.0 | 1.5 |
| 76.1 | 150 | 95 | 2.0 |
| 88.9 | 174 | 111 | 2.0 |
| 108 | 215 | 138 | 2.0 |
Product material
(High quality 316L & 304 Нержавеющая сталь )(CrNiMo steel 1.4401 (В 10088)(GB/T4238 0Cr17Ni12Mo2)(X5CrNi18-10)
Why Press-Fitting Stainless steel Applications
Cost-saving(labor cost-saving) Potable water
Wide range of applications and secure Heating
Green health & environmental protection Chemical
Super long service life Gas and air
Easy and fast to install Industry
Leakage Test
Double visual inspection of all pipe connections and testing of all threaded connections under 0.8bar water pressure
Working Temperature
Colour: Black Green Yellow
Материал: EPDM FKM HNBR
Working temperature -30°C to 120°C -20°C to 200°C -20-100℃
Application Water High-temperature Gas
Fitting Working Pressure
DN（OD） 15 18 22 28 35 42 54 76.1 88.9 108
Толщина(мм) 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.00 2.00 2.00
Material 316L
Apply pressure(bar) 50
Test time(мин) 120
Observation No leakage
Test results Passed
Application Max working pressure Recommended size
Water and liquid solution 40 (bar) 15 to 22mm
Water and liquid solution 25 (bar) 28 to 35mm
Water and liquid solution 16 (bar) 42 to 108mm
Air (nonflammable) 16(bar) 15 to 108mm
Gases (noxious） 5(bar) 15 to 108mm
Recommended pipe wall thickness
15mm x 1.0mm, 18mm x 1.0mm, 22mm x 1.2mm, 28mmx 1.2mm, 35mm x 1.5mm, 42mm x 1.5mm, 54mm x1.5mm.
76.1mm x2.00mm, 88.9mm x 2.00, 108mm x 2.00mm.
Приложения
For sanitary, heating and compressed air installations as well as industrial and other applications in dimensions 15 к 168,3 мм.
fitting body made of stainless steel CR-Ni-Mo steel material no. 1.4404 (AISI 316L) according to EN10088
all important product types available
for thin-walled stainless steel pipes 316L according to DIN EN10312-2
leaking before pressing
pressable with all suitable and system-compatible pressing tools with contour M
DVGW-certified
SZU-certified
GOST-certified
SGR-certified
10 years liability
