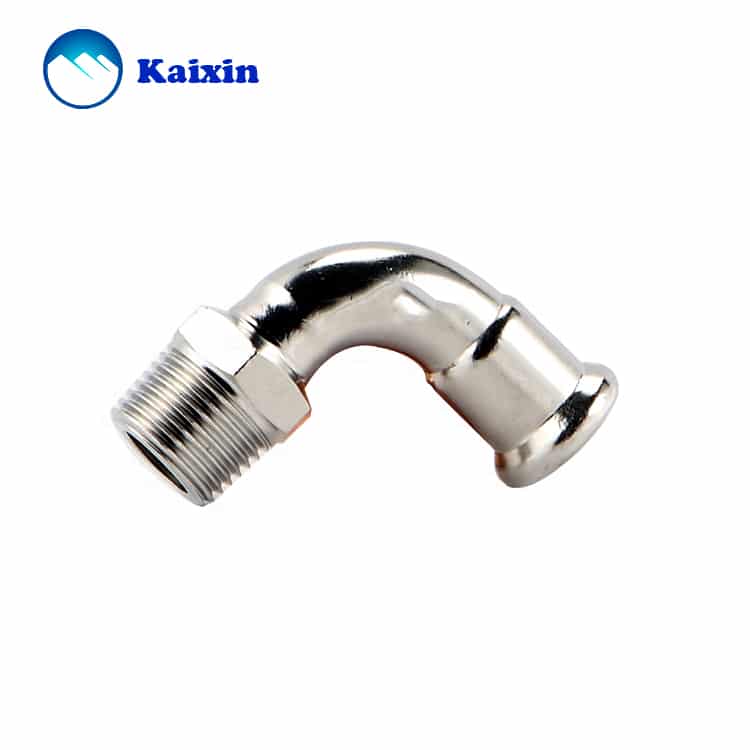

Stainless Steel 90 Degree Elbow Male Threaded press pipe fitting

A stainless steel 90 degree elbow male threaded press pipe fitting is a type of plumbing fitting that is used to create a 90 degree angle turn in a pipe system. It is made of high-quality stainless steel, which gives it excellent resistance to corrosion and high temperatures.

The fitting has male threads on one end, which allows it to be easily connected to a female threaded pipe or fitting. The other end of the elbow has a press-fit connection, which allows for easy installation without the need for welding or threading.

This type of fitting is commonly used in industrial and commercial applications, such as in chemical processing plants, power plants, and manufacturing facilities. It is also used in residential plumbing for hot and cold water lines, gas lines, and other applications.

Overall, the stainless steel 90 degree elbow male threaded press pipe fitting is a versatile and reliable option for creating angled turns in a wide range of pipe systems.

90 degree elbow press fitting made from stainless steel 1.4404. The fitting has a female press port and a male threaded port. Connection 1 is designed for a tube with an outer diameter of 42 mm and connection 2 has R 1-1/2 inch male threads. The fitting has an FKM sealing ring. The maximum pressure is 16 bar (232 psi). The fitting is suitable for temperatures from -20 to 200 °C (-4 to 392 °F). Temporary, the max temperature can be +280 °C (536 °F). The fitting length is 83 mm.

Sizes and Dimension Chart for Stainless Steel 90 Degree Elbow Male Threaded press fitting

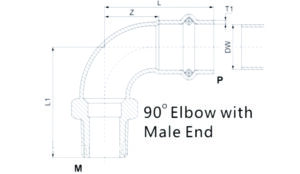

Stainless Steel 90 Degree Elbow Male Threaded press pipe fitting drawing
